Part Number: 62/1066 / Vendor ID Number: 81 / Custom:

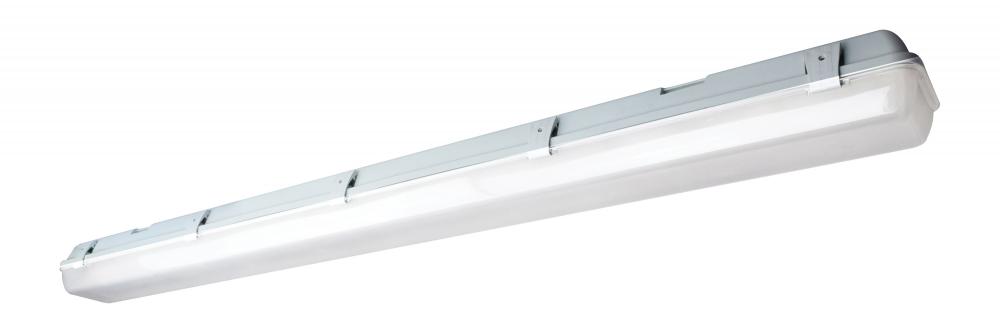

LED Vapor Proof with Occupancy Sensor - 29W - 5000K - 100-277V

LED Vapor Proof with Occupancy Sensor - 29W - 5000K - 100-277V
by Nuvo

278
00
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.94"
Width: 4.53"
Finish
White
Product Overview
LED Vapor Proof with Occupancy Sensor; 29W; 100-277V
Product Availability
    Item has been discontinued
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Sensors
Finish:
White /vendors/vendorImages white.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Dimmable:
Yes-Dimmable
Each Height:
5.71
Each Length:
52.36
Each Width:
7.09
Length:
50
Lumens:
3400L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.290-0.105A
ANSI Base:
Integrated
BAA Compliant:
No
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
Each Cube:
1.2267
Each Quantity:
1
Efficacy:
117.24 LPW
FCC Compliant:
Yes
Finish Family:
White
Incandescent Equivalent:
200W
IP Rating:
IP65
JA8 Compliant:
No
Material:
Plastic
Mounting Procedure:
Ceiling
Operating Temp:
-30C (-22F) to +55C (+131F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Has Occupancy Sensor
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Sensor Detection Range:
16m x 15m Maximum
Sensor Field of View:
30 deg to 150 deg
Sensor Mounting Height:
19.69 Feet (6m) Maximum
Sensor Operating Temperature:
-20C (-4F) to 60C (+140F)
Sensor Operation:
Intergrated Microwave Sensor
Sensor Time Delay:
5s;30s;1min;5min;10min;20min;30min
Short Description:
29W VAPOR PROOF W/OCC SENSOR
Temperature (CCT):
5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
6.49
Manufactured By:
Nuvo
